FOMITO 2-Sided NPF Dummy Battery Cross-shaped to D-tap Power Cable with USB-C Output Output Connecting V-Mount Battery for Field Monitor, Wireless Video Transmission, LED Light, Camera, Smartphone
FOMITO 2-Sided NPF Dummy Battery Cross-shaped to D-tap Power Cable with USB-C Output Output Connecting V-Mount Battery for Field Monitor, Wireless Video Transmission, LED Light, Camera, Smartphone
Couldn't load pickup availability
Product Description
Product Features
New structure design, CNC aluminum alloy center frame, strong, safe and reliable.
Wide voltage power supply, high conversion efficiency up to 96%, small heat, high power, can be any continuous shooting without power.
With three-way output function
NP-F550 shares 8V8A 64W output power on both sides of the connector, and the C-type output port supports PD 5/9/12V, 36W.
Internal Protection System
Built-in input and output reverse, high voltage, overload protection circuit, you can safely and securely use the fake battery, safer equipment.
Input and Output
Input: Dtap 9-20V, with anti-reverse connection protection, input reverse protection.
Output: DC 8V 8A (NP-F two interfaces share 8A), Type-C output supports PD 5/9/12V, 36W.
Note:
- Do not supply power to the cameras.
- When the input is 9V, the output may only be 7.8V as the normal voltage drop, can be used normally, but Type-C is only 5V output.
Quick Installation

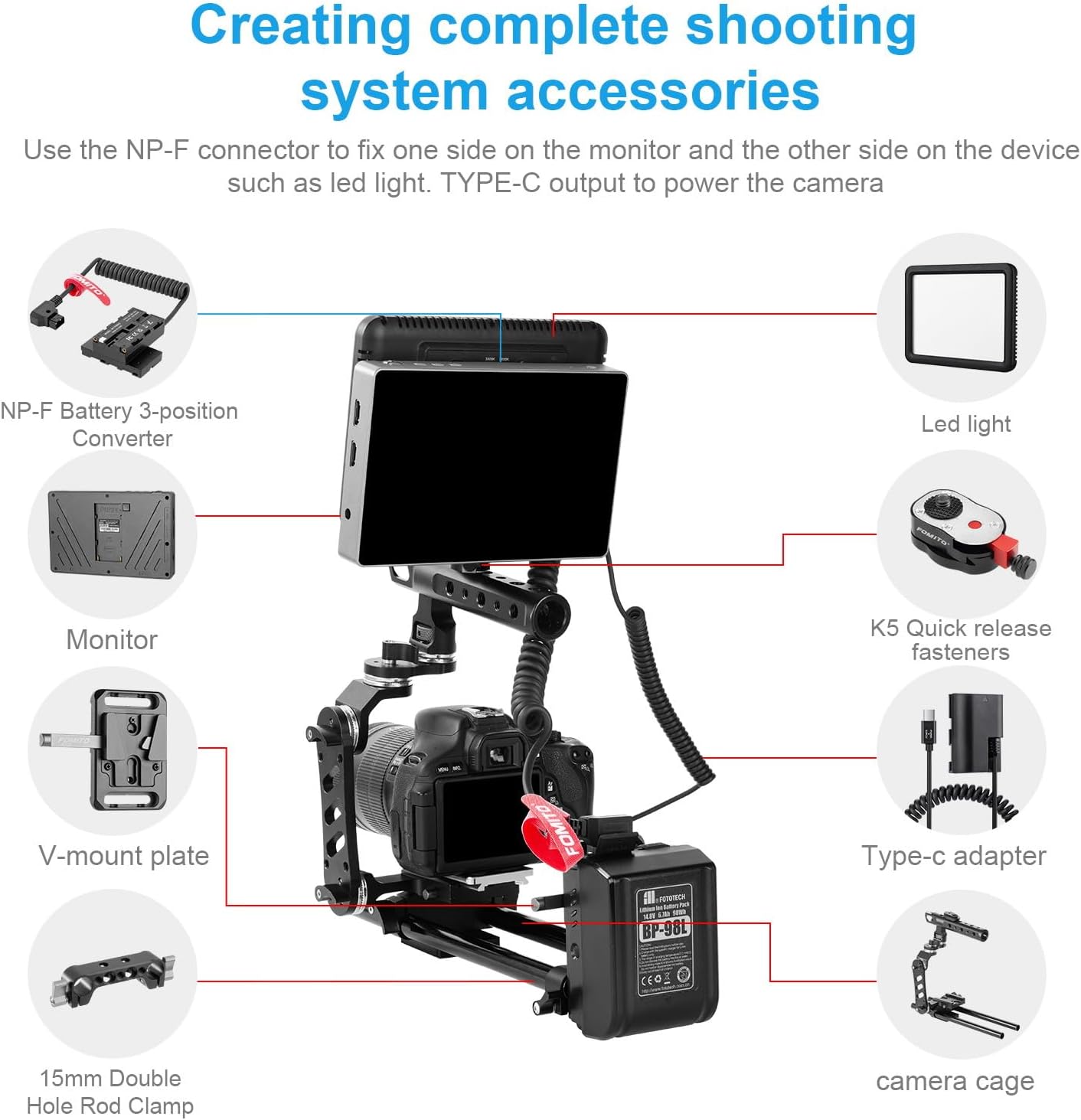

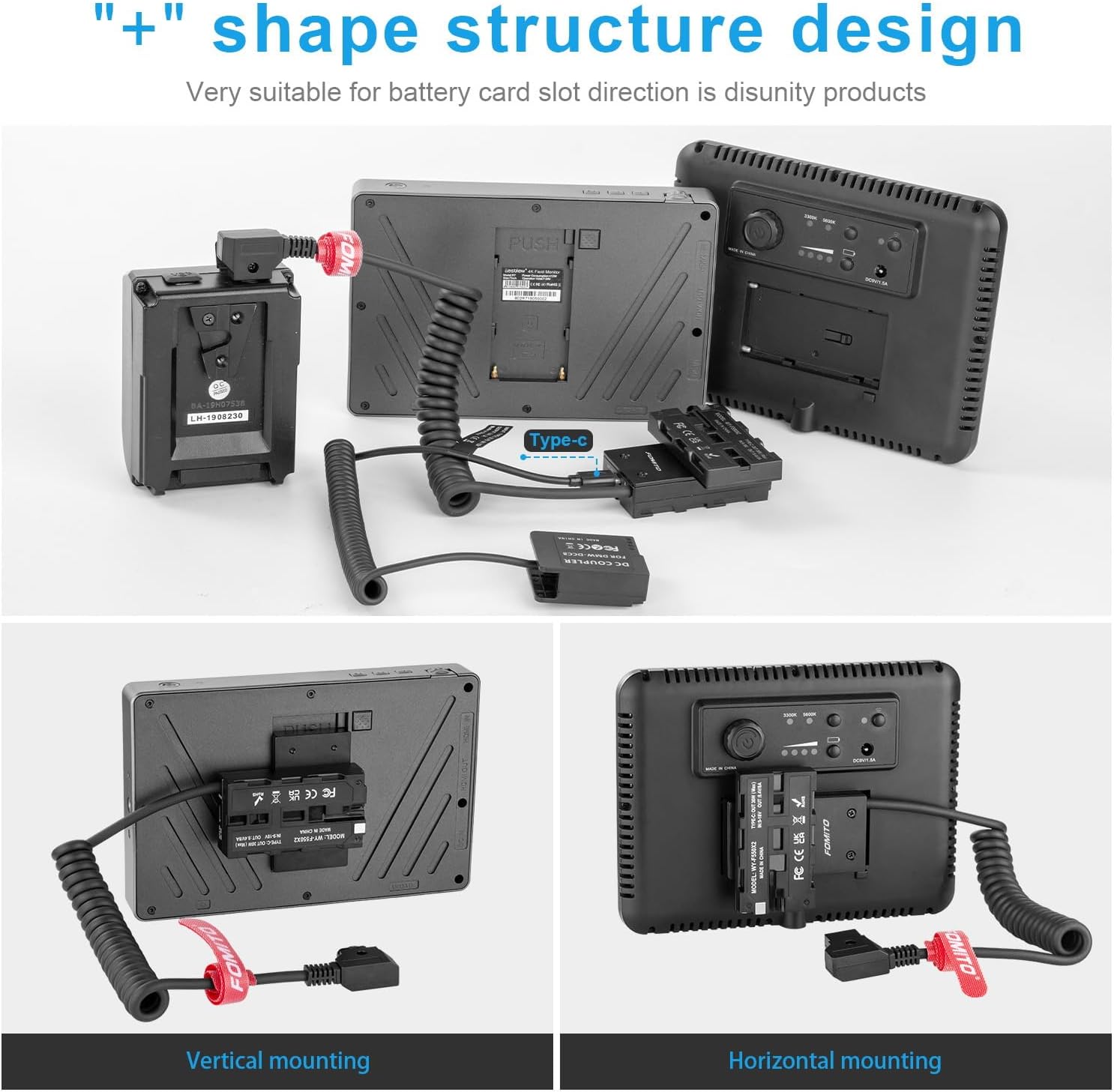

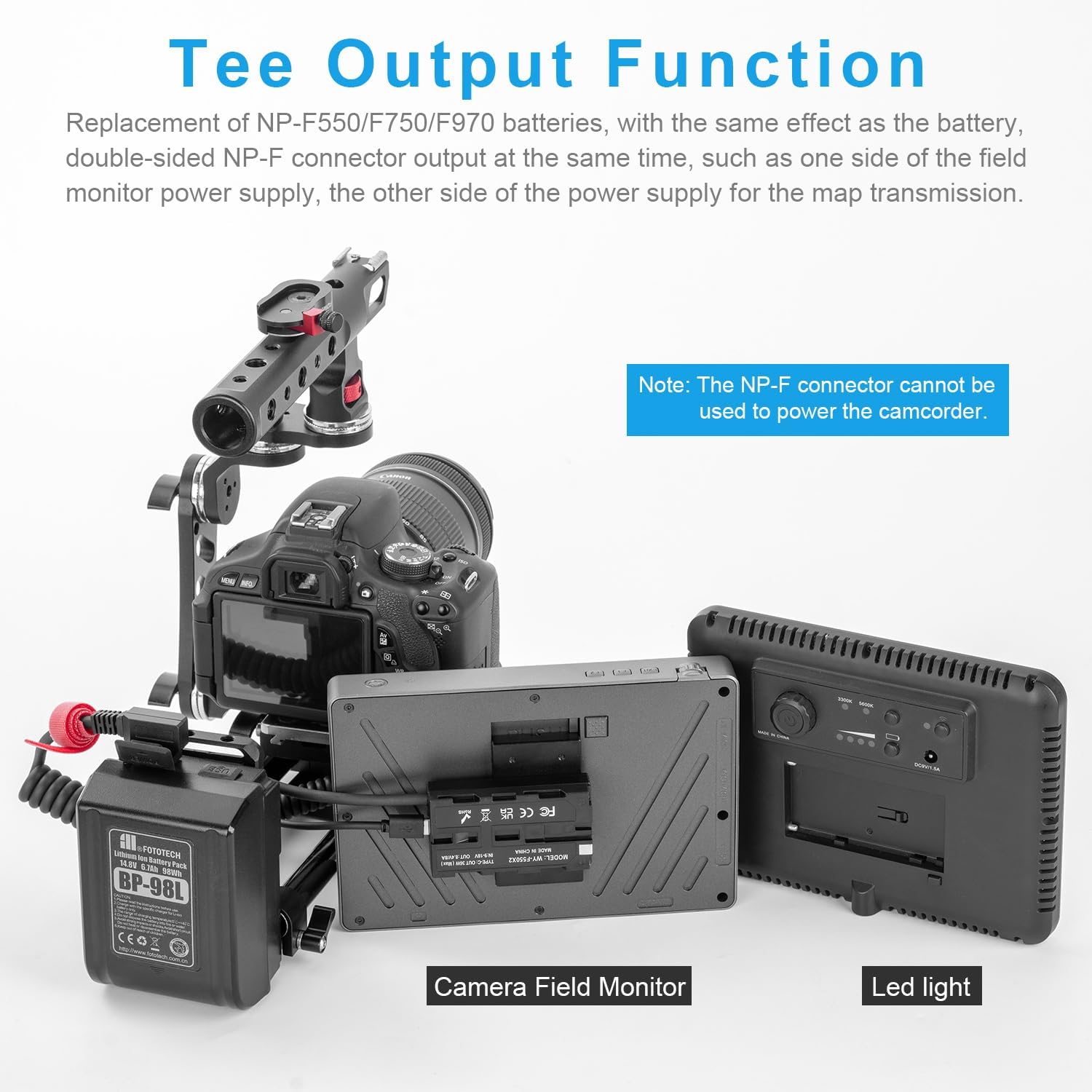

Like the battery NP-F550 installation, it uses a double-sided NP-F interface for simultaneous output, such as one side to power the monitor, other side to power the led light.
Product Specification

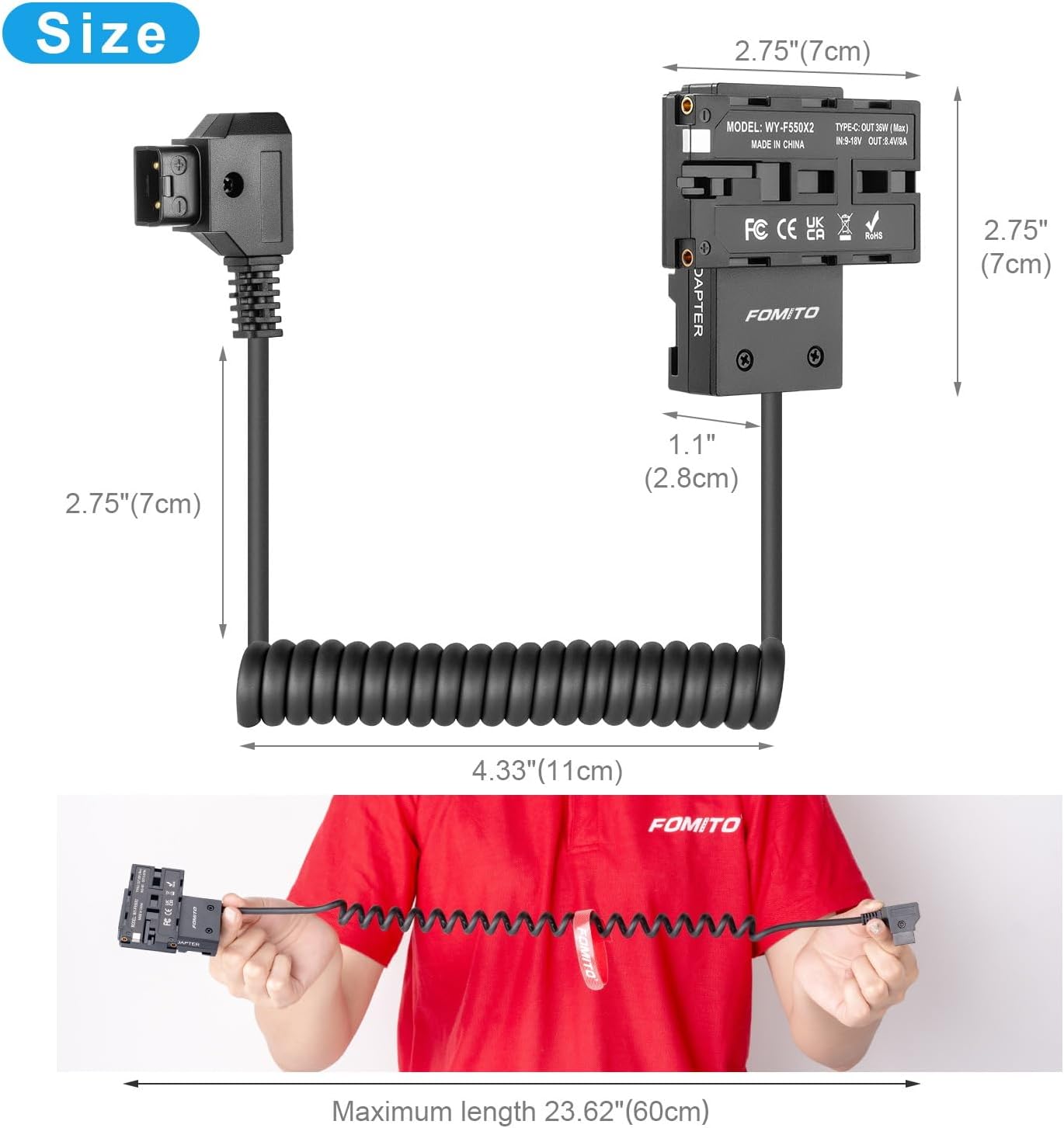

- Product Size: 2.75*2.75*1.1in/70*70*28mm (without wire)
- Wire Specifications: spring wire OD5.0, conductor 0.75 square, both ends 2.75"/7cm, coiled part of the wire 4.72"/12cm, elongation 23.6"/60cm
- Product Weight: 0.27lbs/124g
- Corresponding Battery Model: Sony NP-F990/F970/F750/F550
- Replaces NP-F550/F750/F970 batteries with the same effect as battery use.
